Environment friendly R32 refrigerant
R32 rather than one of the older blends. Its global warming potential is 675.
Split AC — inverter

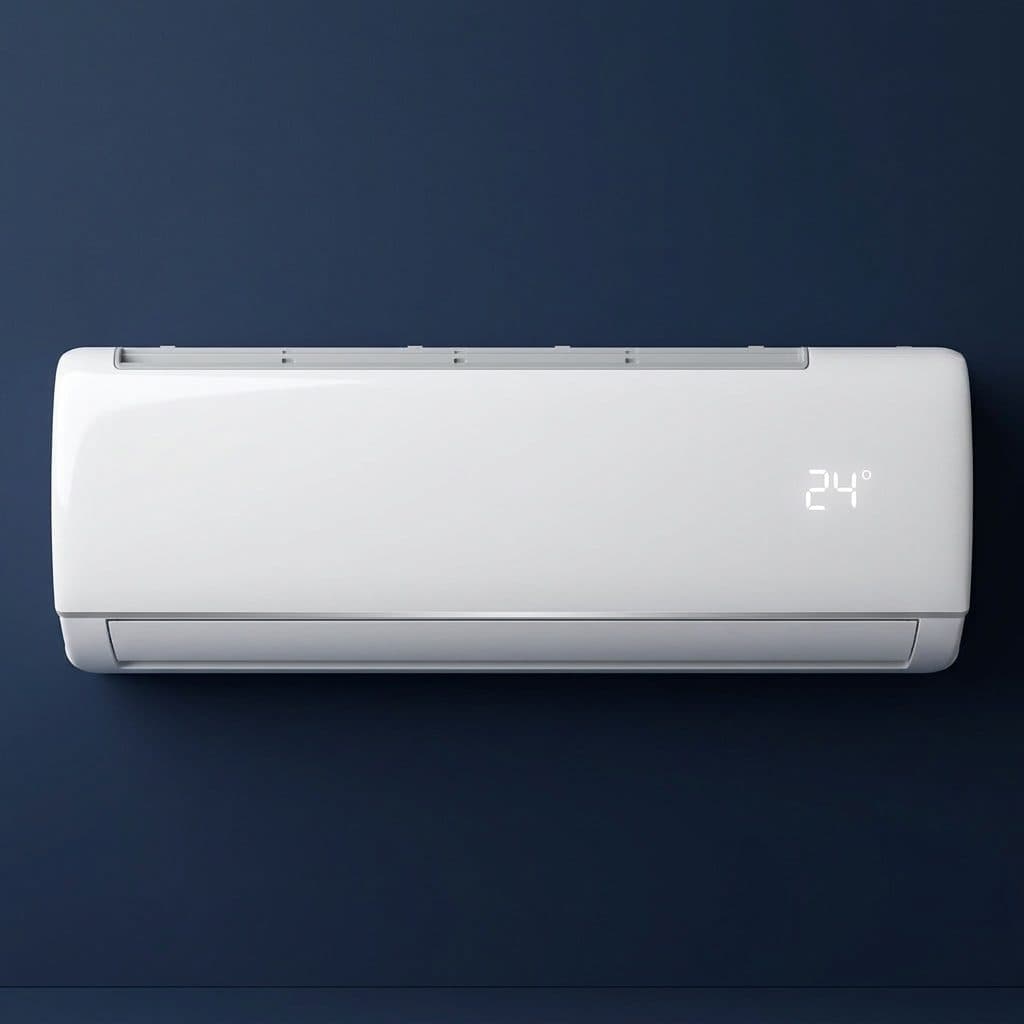

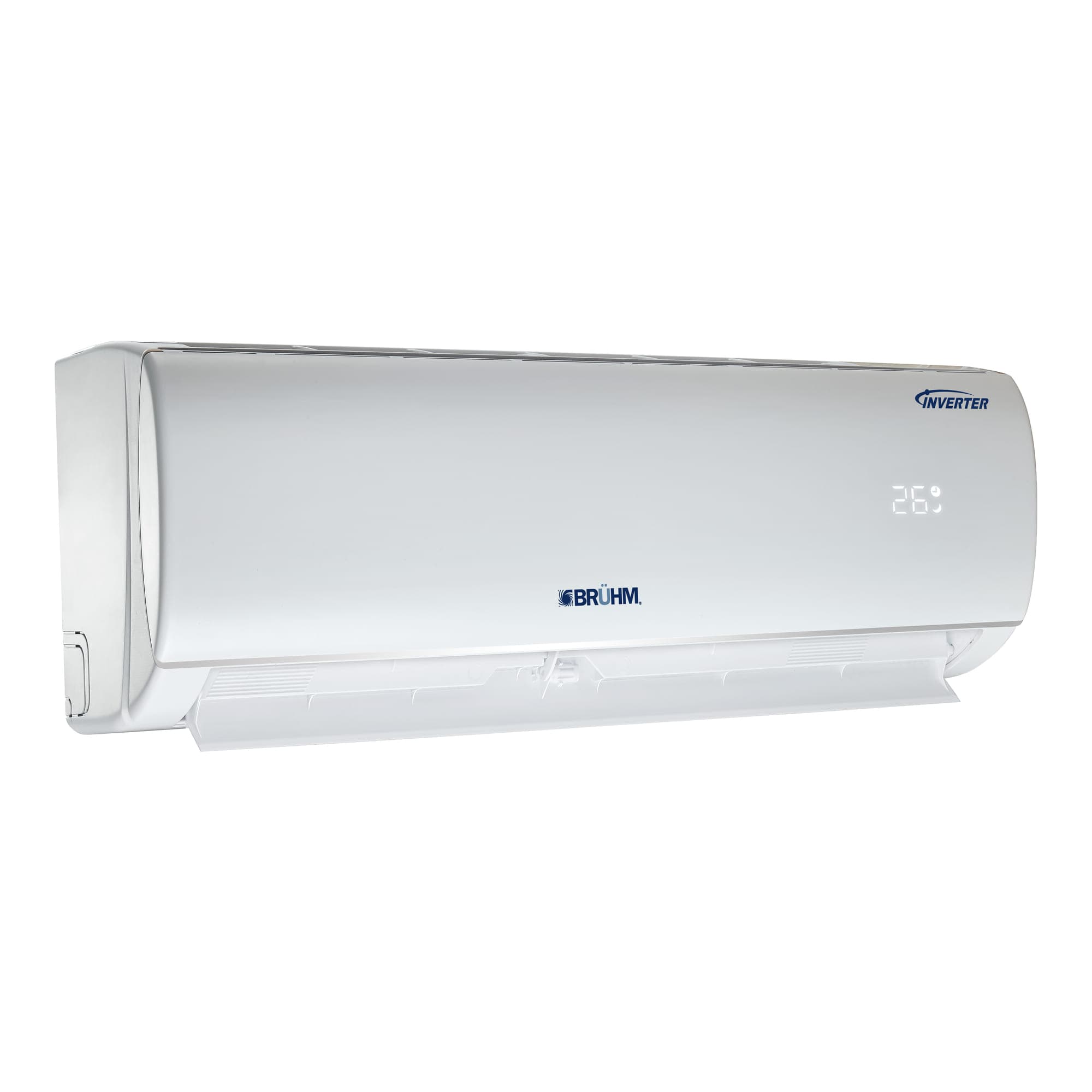

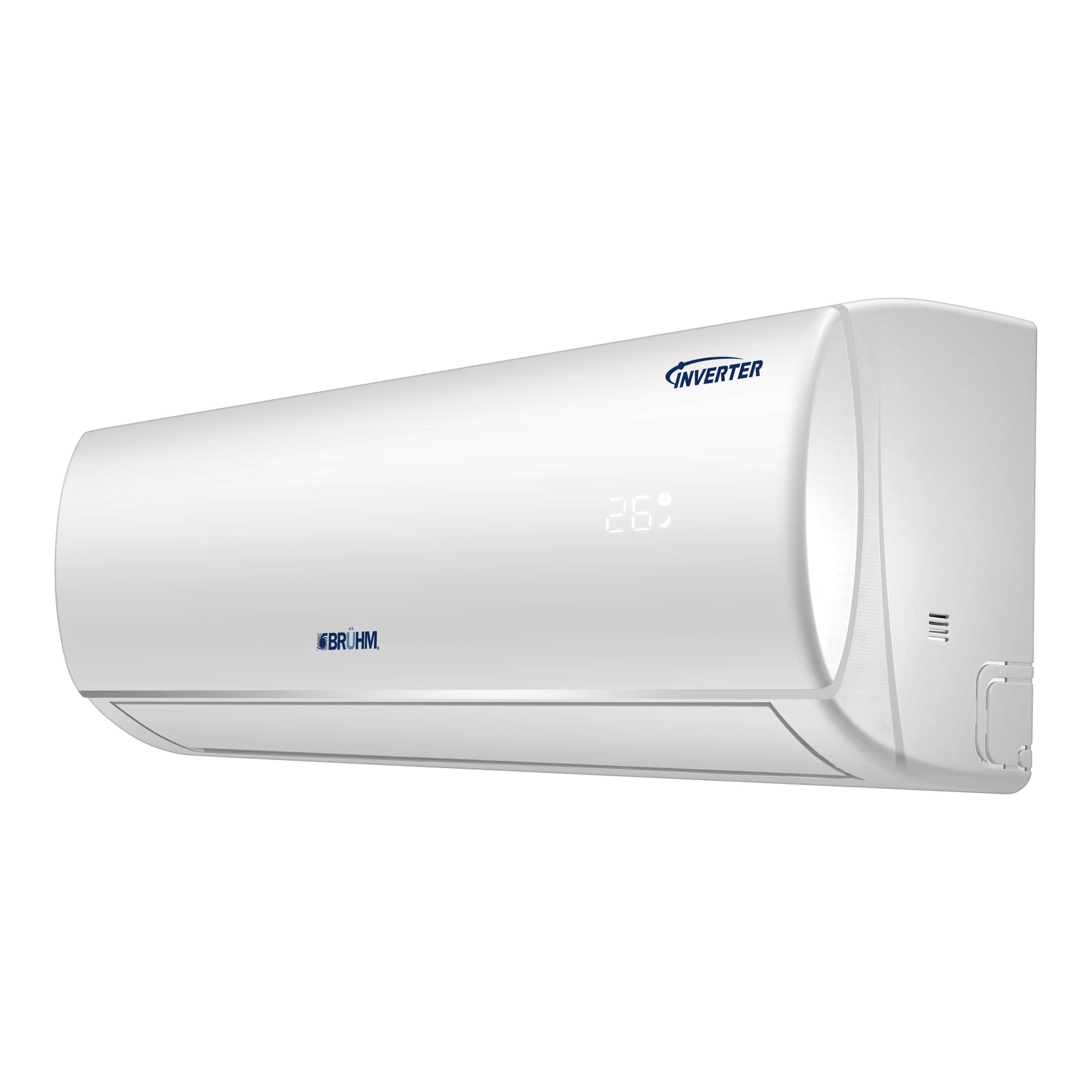

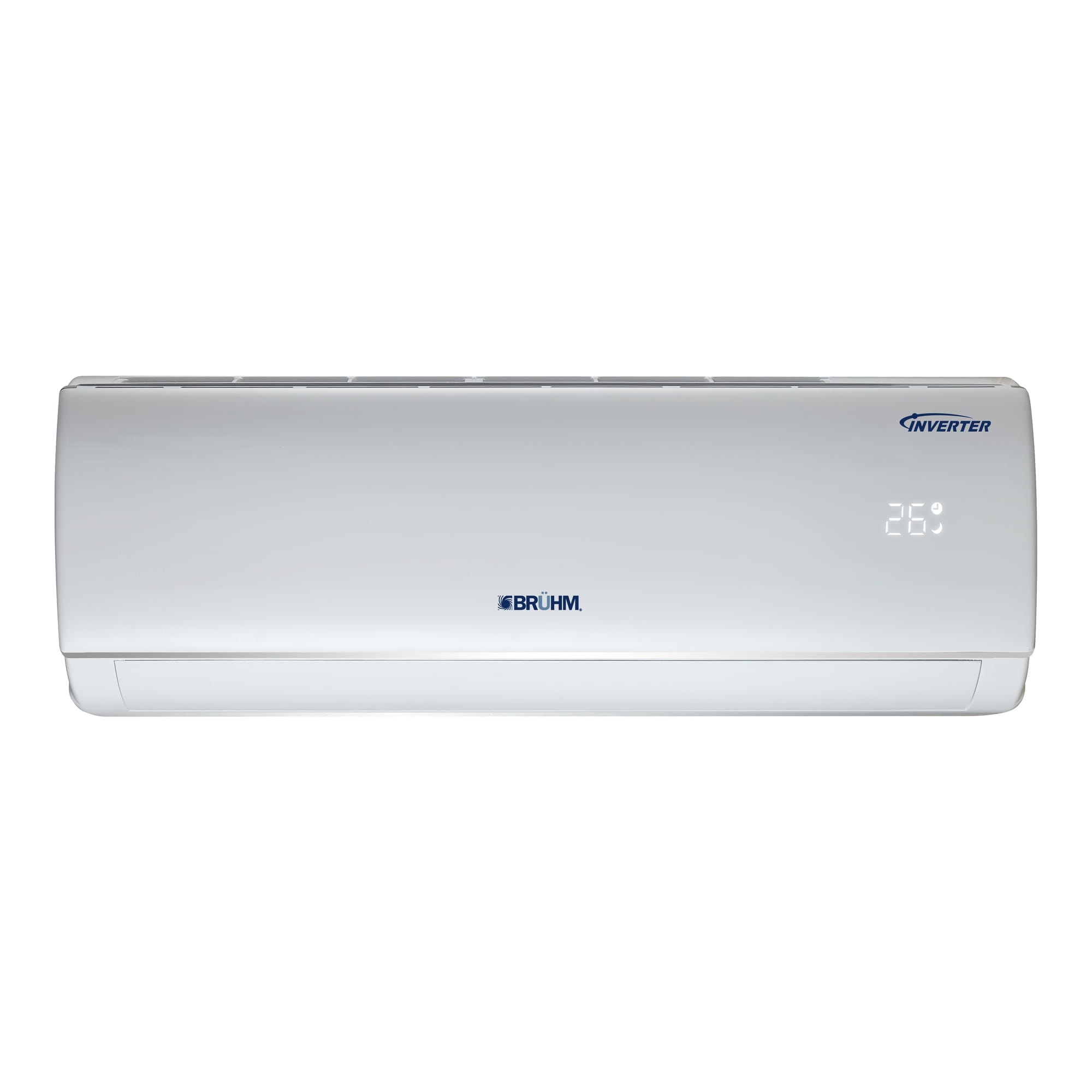

Bruhm Inverter Split Air Conditioner · IC3W
Model BAS-09IC3W
No reviews yet — be the first9,000 BTU/hrInverter, four-way airflowInverter Split
Capacity
Talk to a Bruhm advisor on WhatsApp
This image was created with AI to show the product. Colours, finish and small details may vary from the item delivered.

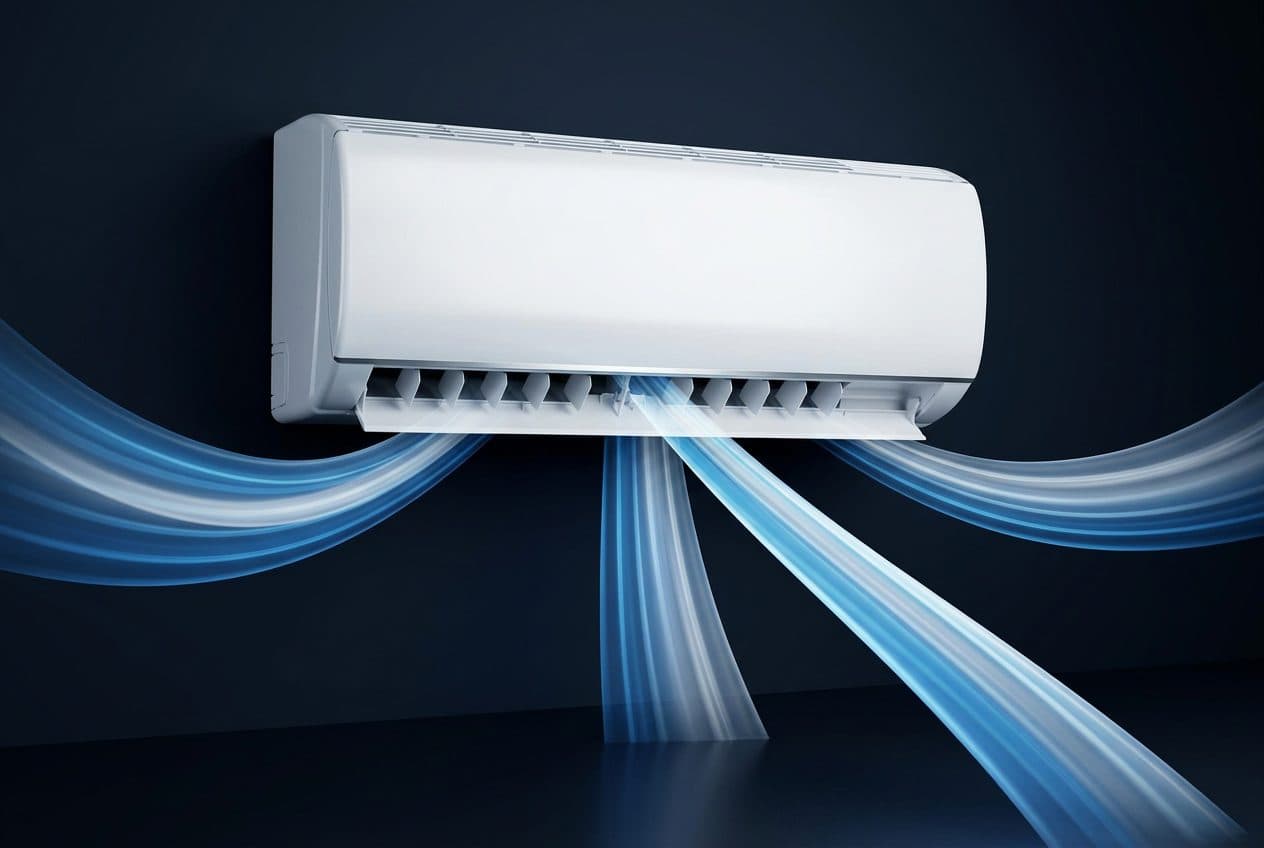

Four-way airflow
Air in four directions,
not one cold column.

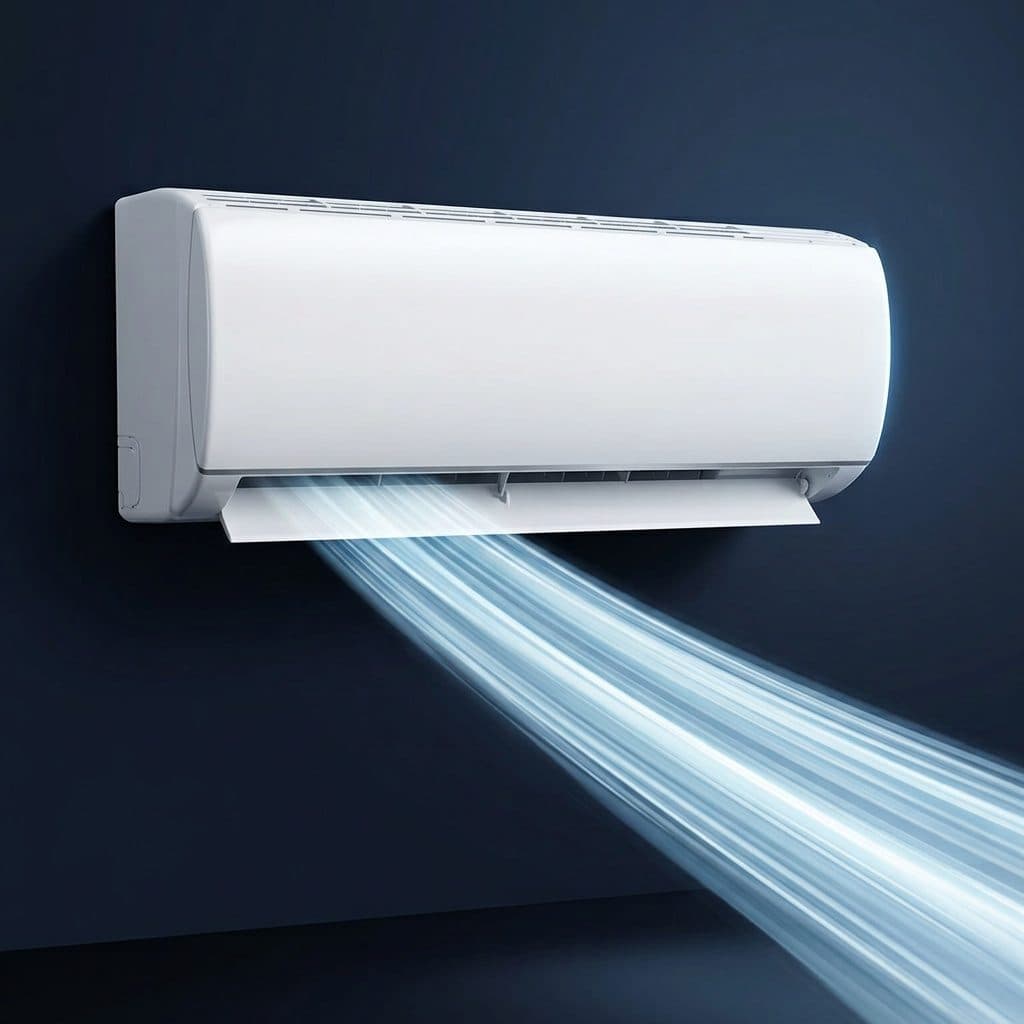

This air conditioner spreads air in four directions, not just one. The vents move both up-down and side-to-side, so the room cools evenly, without one cold blast landing on whoever sits underneath.
This image was created with AI to show the product. Colours, finish and small details may vary from the item delivered.

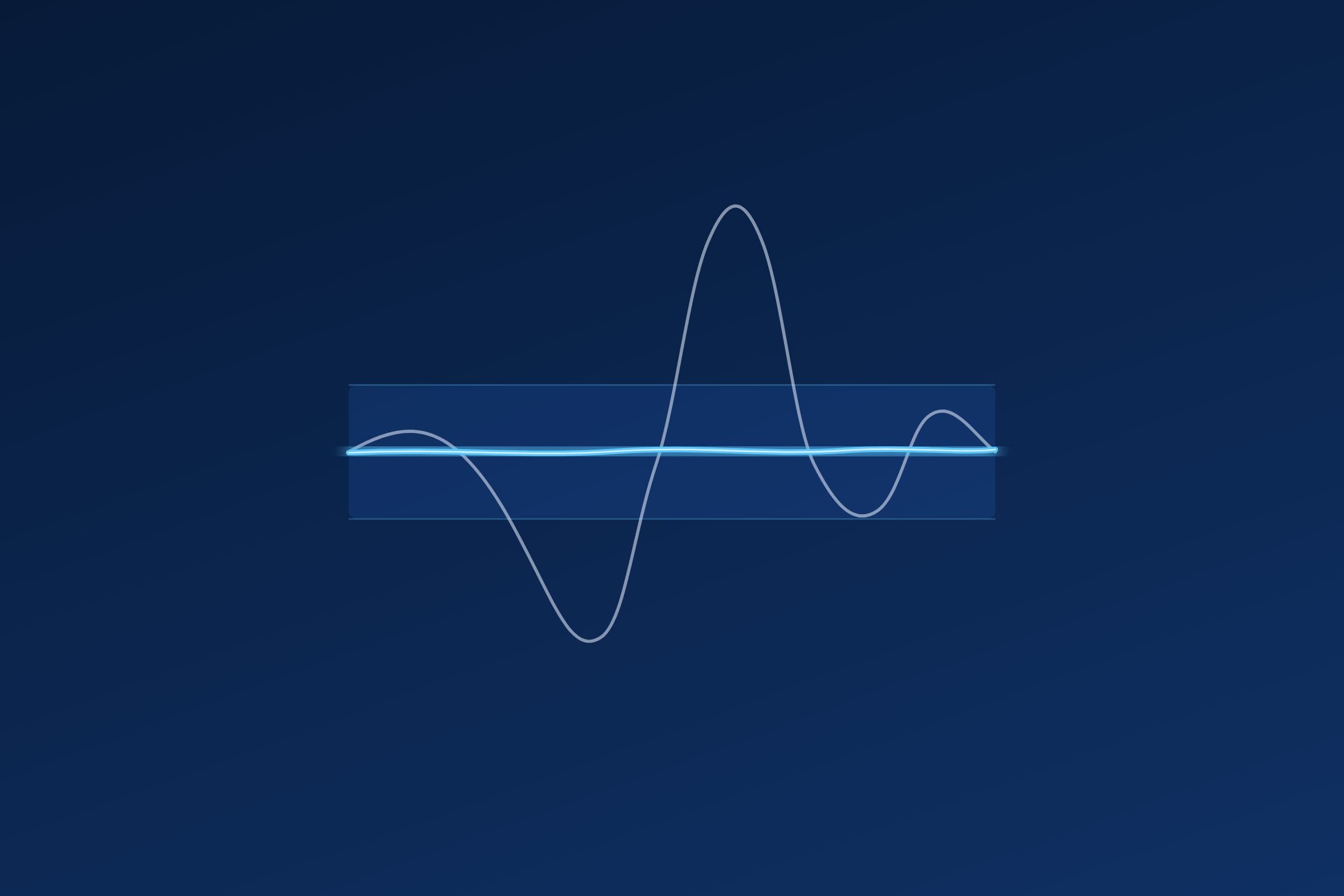

Inverter wide voltage range
150 V to 285 V. No stabiliser.
The compressor runs at variable speed, so if the power supply dips, it just slows down instead of switching off. It's rated to handle anywhere from 150V to 285V.
- Inverter wide voltage range: 150–285 V
- Rated 100–240 V / 50 Hz
- Variable-speed inverter compressor
- CB certificate approval
This image was created with AI to show the product. Colours, finish and small details may vary from the item delivered.

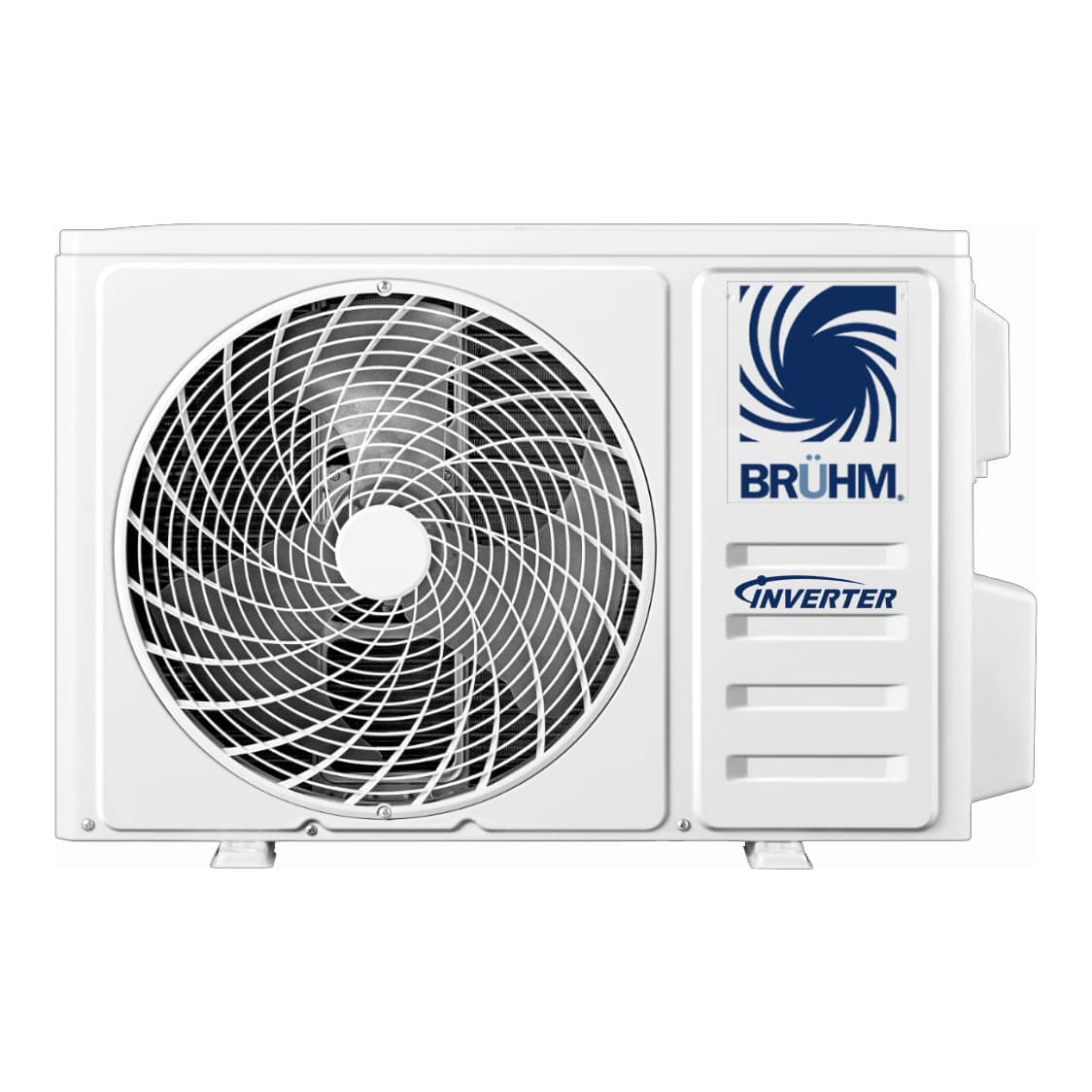

Golden fin condenser
The coil is coated against rust.
The outdoor coil has a golden anti-rust coating. This is the part that sits outside, exposed to sun and rain, where an uncoated coil would rust fastest.
This image was created with AI to show the product. Colours, finish and small details may vary from the item delivered.
Anti-bacteria filter
Filtered on the way in.

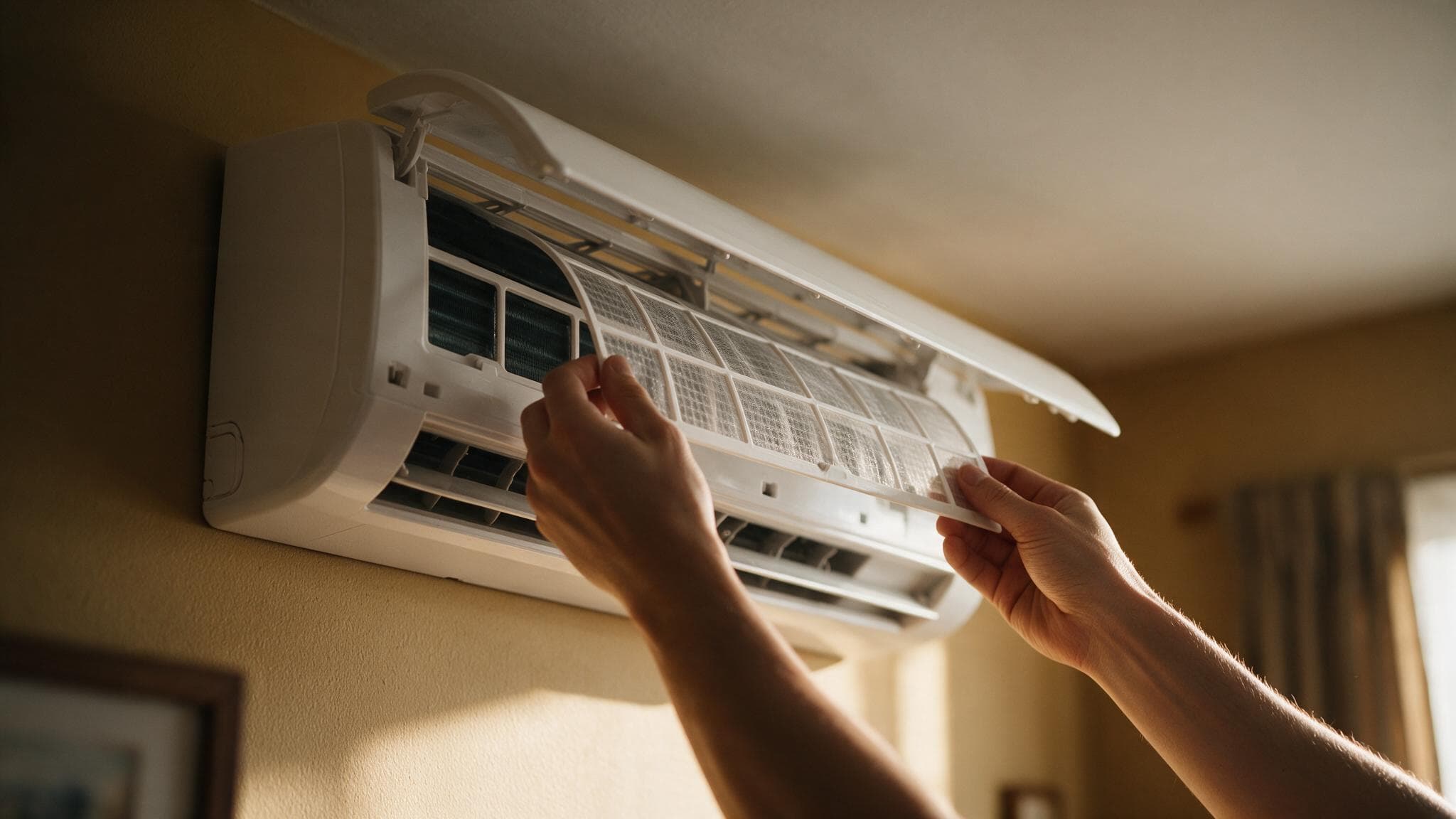

The intake filter is treated so bacteria can't settle on it. It lifts straight out of the front of the unit to rinse clean, and every bit of air the unit recirculates passes through it first.
This image was created with AI to show the product. Colours, finish and small details may vary from the item delivered.
Hidden LED display
Shows the temperature, then gets out of the way.
The display sits flush in the panel, out of sight most of the time. It only lights up while you're changing a setting, so it won't glow in a dark bedroom.
This image was created with AI to show the product. Colours, finish and small details may vary from the item delivered.
Turbo mode
One button for the worst of the heat.

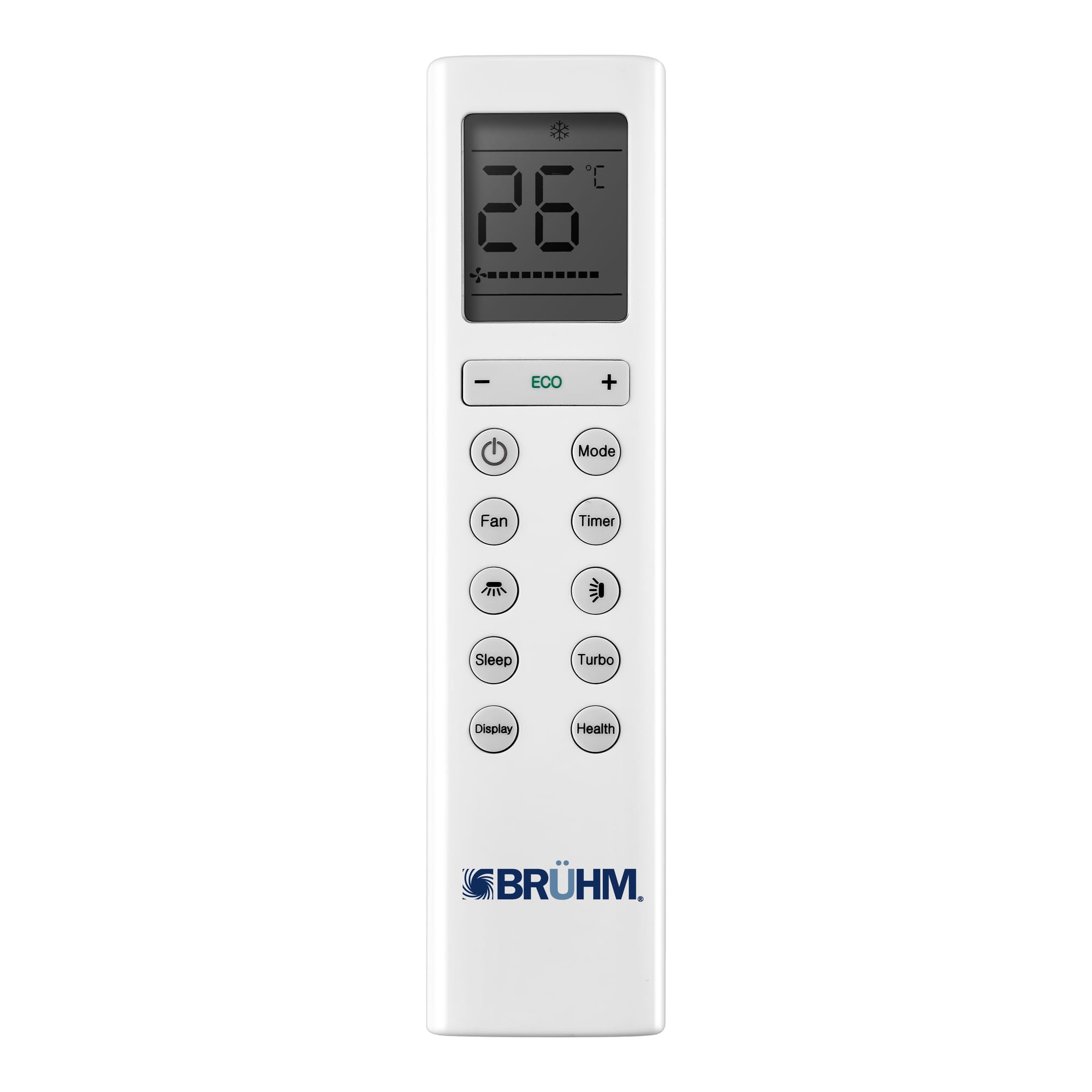

Turbo runs the fan and compressor at full power, to cool the room down fast when you walk in. You switch back to normal once it's cool. The button sits on the remote, next to sleep and the timer.
And the modes
The rest of what it does.
Low noise & windy airflow
The low fan speeds are the quiet ones. The measured figure for each capacity is on the spec sheet below.
Dual drainage
Two drain points, so the condensate can leave whichever way the wall and the pipe run allow.
Sleep mode
One button on the remote for overnight running.
Time mode
Set it to start or stop at a time and leave it alone.
Full specification
Everything, from the official spec sheet.
General
- Brand
- Bruhm
- Model No.
- BAS-09IC3W
- Classification
- Split AC — inverter
- Design
- Premium design
- Air conditioner type
- Split
- Country of origin
- China
- Certificate approval
- CB
Cooling
- Capacity
- 9,000 BTU/hr
- Cooling capacity
- 2.64 kW/hr
- Compressor
- Variable speed (inverter)
- Climate type
- T/ST
- Cooling technology
- Inverter, four-way airflow
Energy & noise
- Annual energy use
- 1,062 kWh / year
- AEER
- 3.76
- TCSPF
- 4.35
- Noise, indoor / outdoor
- 43 / 55 dB
- Refrigerant
- R32
- Global warming potential
- 675
Power
- Voltage / frequency
- 100–240 V / 50 Hz
- Inverter voltage range
- 150–285 V
Dimensions & weight
- Indoor unit (W × D × H)
- 698 × 255 × 190 mm
- Outdoor unit (W × D × H)
- 672 × 276 × 422.5 mm
- Indoor net weight
- 6.6 kg
- Outdoor net weight
- 15.5 kg
Retailer prices in Nigeria
Your authorised retailer for this model.
Buy →Electromart
Best price₦409,990
Last checked 12 Oct
Prices shown include VAT. Bruhm doesn't sell directly — all transactions are with the retailer of your choice. Authorised retailers only.
Verified buyer reviews
What owners say.
No reviews yet
This product doesn't have any reviews yet. Verified buyers will be able to leave one here once they've registered it.
Own this product?
Share your experience — reviews are checked before they appear.
Frequently asked
Questions our team gets every week.
Which capacity do I need?
Capacity is the only thing the four options change. The 9K delivers 2.64 kW of cooling, the 12K 3.50 kW, the 18K 5.20 kW and the 24K 7.20 kW. Oversizing costs you more to run without cooling any better. The 24K is listed at over three times the 9K's annual consumption.
Will it run on an unstable supply?
It is rated for a 150–285 V inverter range, so a sagging supply slows the compressor instead of tripping it. The unit itself is specified at 100–240 V / 50 Hz.
How loud is it?
Between 43 and 51 dB indoors depending on capacity, and 54 to 57 dB at the outdoor unit. The 9K is the quietest of the four indoors.
What refrigerant does it use?
R32, which has a global warming potential of 675. The condenser is coated to resist rust. That matters most for an outdoor unit in humid coastal air.
